ALOGIC Clarity 27" 5K HDR Multi-Touch Monitor

• Works with Mac & Windows
• 27" 16:9 IPS Touchscreen Panel
• HDMI | DisplayPort | USB-C (65W)
• UHD 5K 5120 x 2880 at 60 Hz
• 14 ms Response Time
• 1000:1 Static Contrast Ratio
• 400 nits Brightness
• 1.07 Billion Colors with HDR
• 99% DCI-P3 & Adobe RGB | Stylus Support
• Integrated Speakers & USB Hub

Designed for creative professionals, the ALOGIC Clarity 27" 5K HDR Multi-Touch Monitor delivers crisp visuals with exceptional color. Compatible with both Mac and Windows, this touchscreen display enhances your workflow with an expansive UHD 5K 5120 x 2880 resolution and versatile connectivity.

Connect your compatible laptop to the USB-C port to enable touch control while transferring video, data, and up to 65W of power over a single cable. A DisplayPort 1.4 input is also available alongside two HDMI 2.0 ports. The HDMI ports support 5K resolutions at 30 Hz.

Exceptional Color
Housed in an aluminum frame, the 27" IPS panel is factory calibrated for Delta E <1 accuracy, covering 99% of the DCI-P3 and Adobe RGB gamut. HDR support with a 1000:1 static contrast ratio and 400 nits brightness enhances images with realistic highlights and deep shadows.

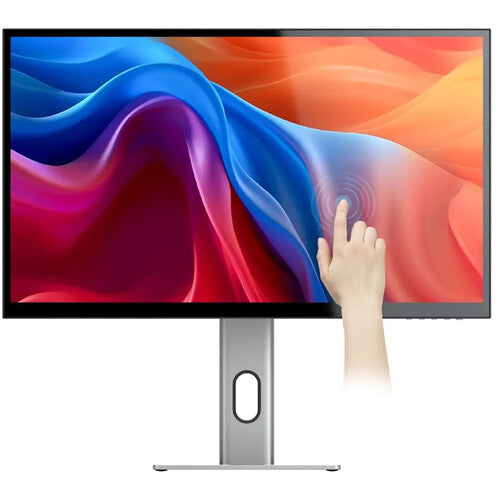

Built for Touch
Swipe the Clarity's lower right corner with two fingers to access a touch menu for quick and easy display adjustments. Additionally, the Clarity Touch Drivers for macOS allow you to assign custom shortcuts to multitouch gestures.

Made for Artists
Add a separately purchased Microsoft Pen Protocol (MPP) 2.0 compatible stylus such as the Clarity Active Stylus to draw professional illustrations and make detailed photo edits.

USB Hub
Quickly connect peripherals such as flash drives, mice, and keyboards through the monitor using the 2-port USB 3.2 Gen 1 hub.

Integrated Speakers
Enjoy videos and music with the built-in 5W stereo speaker system. Plug a pair of headphones into the 3.5mm jack for listening privacy.

A Clear View

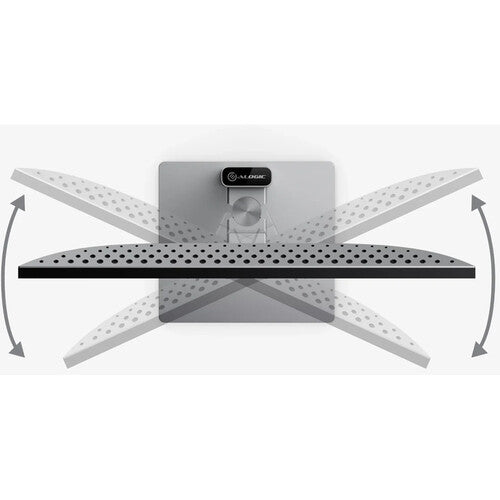

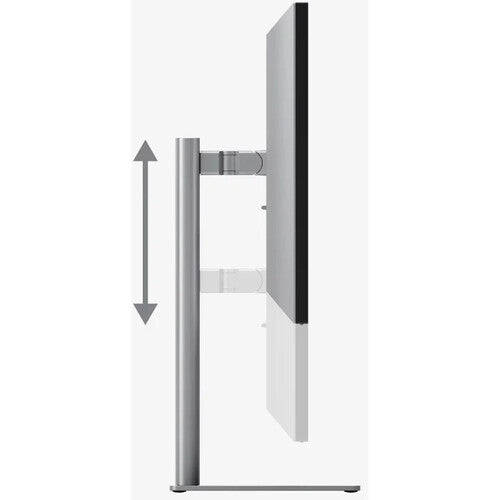

The included stand allows you to optimize your view and set up multi-monitor configurations by adjusting the height, tilt, swivel, and screen rotation. The 100 x 100mm VESA pattern and included mounting screws allow you to attach the screen to a wall or swivel arm. Using a separately purchased Clarity Fold Stand allows you to quickly move the screen downward to use it comfortably as a drawing tablet.

Physical Characteristics

• Overall Dimensions (incl. stand): 623.8*415.4*220mm (LxDxH)
• Monitor Dimensions (without stand): 623.8*48.3*372.2mm (LxDxH)
• Weight (without stand): 4.8kg
• Stand Dimensions: Base Width: 240mm, Base Length: 225mm | Stem Height: 400mm | Monitor sits 75mm from front of base, 150mm from rear

Ports

• Video: USB-C 3.0 (5K @ 60Hz Video, Data and Power Delivery)
  DisplayPort 1.4 (5K @ 60Hz)
  2x HDMI 2.0 (5K @ 30Hz)
• Accessory: 3.5mm Audio, USB-B 3.0 (Sends Data to PC), 2x USB-A 3.0 (Accessories)
• Power Delivery: Up to 65W USB-C PD
• Monitor Power: Power Supply: DC 19V⎓7.89A (150W)
  Power Consumption: 45W (Typical), 165W (Maximum)
• Audio: 2x 5W/4Ω Speakers
  3.5mm Audio port for external headphones or speakers
• VESA Mount: 100x100mm
• Package Includes: 27” Clarity 5K Touch, USB-C Cable, DisplayPort Cable, HDMI Cable, USB-B to USB-A Cable, Power Adapter, User Manual, Colour Calibration Report, VESA Mounting Screws
• Touchscreen: Up to 10 Point Multitouch, One Glass Solution (OGS), Compatible with MPP (Microsoft Pen Protocol) 2.0 Active Styluses
• Warranty: 2 Years
• Barcode: 9350784100580


Video Specifications

Resolution

• USB-C/DisplayPort: Up to 5120x2880@60Hz (Landscape)
  Up to 2880x5120@60Hz (Portrait)
• HDMI: Up to 5120x2880@30Hz (Landscape)
  Up to 2880x5120@30Hz (Portrait)
• Pixel Density: 218 PPI
• Refresh Rate: 60Hz
• Panel Type: IPS
• Backlight Type: LED
• Screen Size: 27”
• Panel Finish: Gloss with Anti-Reflective Finish
• Aspect Ratio: 16:9
• Contrast Ratio: 1000:1
• Brightness: 400 nits (Typical), 350 nits (Minimum)
• Viewing Angle: 178°/178°
• Panel Depth: 8 bit + HiFRC
• Display Colours: 1.07B
• HDR Compatible: HDR400
• Response Time: 14ms
• Colour Accuracy & Gamut Coverage: sRGB: 100% | Adobe RGB: 99% |
  NTSC: 99% | DCI-P3: 99% | Average ΔE: <1
