- Brightness of 4700 Lumens
- WXGA (1280 x 800) Native Resolution
- 1.113 to 1.523:1 Throw Ratio
- 2 x HDMI | 1 x VGA | 1 x RCA Composite
- IP6X Dustproof Design
- 20,000 Hours of Estimated Laser Life
- 360° Installation
- ±30° Horizontal & Vertical Keystone
- +12.4% Vertical Lens Shift
- Integrated Dual 8W Speakers
A variety of SD, HD, and UHD sources are supported via HDMI 2.0, VGA, and RCA composite A/V inputs. The integrated standard-throw lens is capable of filling a 16:10 aspect screen, 100" in diagonal, from 9' away. Additionally, an IP6X dustproof design, 360° orientation support, four-corner correction, and keystone capabilities enable installation in less-than-ideal environments.
Multi-Module Laser Light Source
Laser light sources typically enable maintenance-free operation for up to 20,000 hours in standard mode. By utilizing a multi-module design, the laser beam originates from several laser diodes. This configuration ensures that even if one diode experiences a malfunction, the overall brightness remains relatively unaffected. This design significantly reduces the likelihood of abrupt loss of projection light sources during crucial presentations, resulting in enhanced stability and reliability.
Wide Color Gamut
The laser light source exhibits a pure texture, covering more than 92% of the Rec.709 color gamut range. Ricoh's unique NCE natural gain technology allows for lifelike color reproduction to fit the needs of the environment.
Advanced Image Adjustments

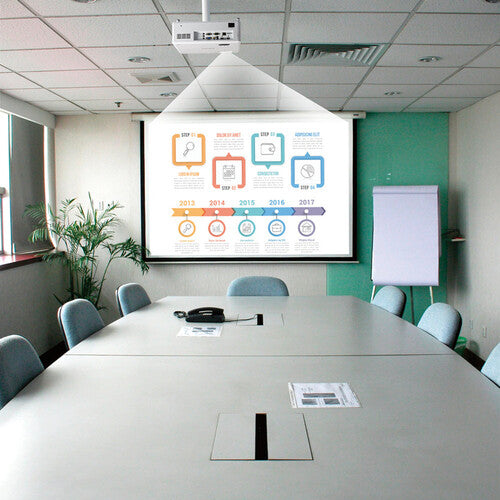

The PJ WXL5860 supports 360-degree installation, making it suitable for a wide range of applications like ceiling, floor, or wall projection. Due to installation conditions, image distortion and deformation may occur once the projector is set up. The built-in four corners correction function enables individual adjustments for each corner of the projection screen. When paired with horizontal and vertical keystone adjustments, a perfectly rectangular view can be achieved.
IP6X Dustproof Design
Dust plays a crucial role in impacting a projector's lifespan. The PJ WXL5860 optical engine is fully enclosed, with a dustproof rating of IP6X. This significantly reduces maintenance costs and prolongs the life of the projector by mitigating common issues caused by contaminants, such as image speckling and brightness decline.

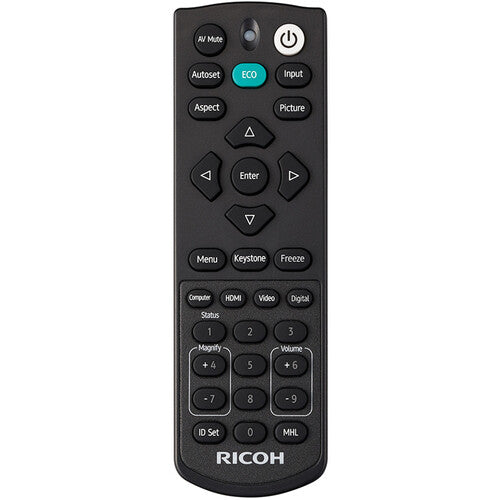

Remote Control ID Setup
By using the remote control numbering function, up to 99 projectors can be set with different remote control numbers. The remote can control the corresponding projectors by switching different IDs, avoiding simultaneous control of multiple adjacent projectors when using the IR remote.
Additional Features

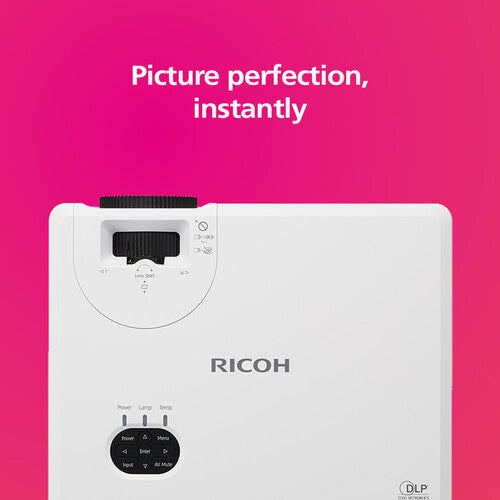

- 12.4% vertical lens shift
- Automatic vertical angle correction
- Quick power on/off
- DICOM Sim mode
- Built-in dual 8W speakers
